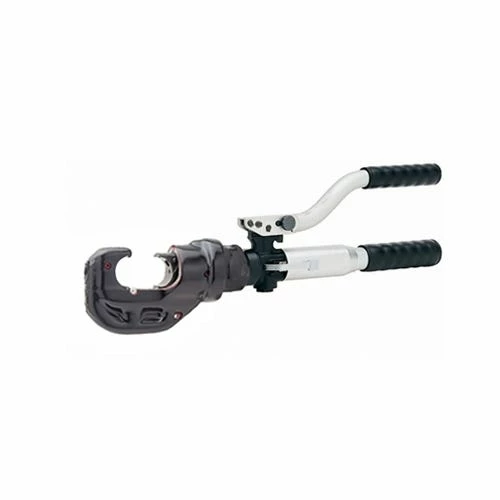

Greenlee 12 Ton Hydraulic Crimping Tool 1.65 Opening PVC Covered HK1240C

• Greenlee
• 12- Ton Hydraulic Crimping Tool 1.65 Opening PVC Coated HK1240C
• Two crimping head choices:HK1230 with 1.20 IN (30 mm) opening; and HK1240 with 1.65 IN (42 mm) opening
• Both heads accept Greenlee KC12; KA12 and KD12 crimping dies as well as industry inUin style dies
• New head designs result in lower weight and improved durability – tested to 50;000 crimp cycles
• Two-speed pump to reduce cycle time
• Ram automatically retracts when crimp cycle is complete – a Greenlee exclusive
• Crimping heads rotate 360
• Smaller and lighter than competitive tools
• Covered head models have two layers of PVC that total approximately 3/16 IN (4.8 mm) thick. The outer layer is black and the inner layer is red
• Includes carrying case
• Capacity : 8 AWG – 750 KCMIL Color-Coded Copper Lugs And Splices
• Crimping Force : 24000.000 LB (106.000 KN)
• Includes : Carrying Case
• Jaw Opening : 1.650 IN (42.000 MM)
• Length : 21-1/2 IN (546.000 MM)
• Rotation : 350 DEG
• Standard : C/US UL Listed
• Type : Manual Hydraulic; PVC Covered
• Weight : 13.200 LB ( 6.000 KG)

“
