Greenlee 18V Gator 6 Ton Insulated Crimper W/ 6ID Head Kit EK6IDCVX11

Greenlee

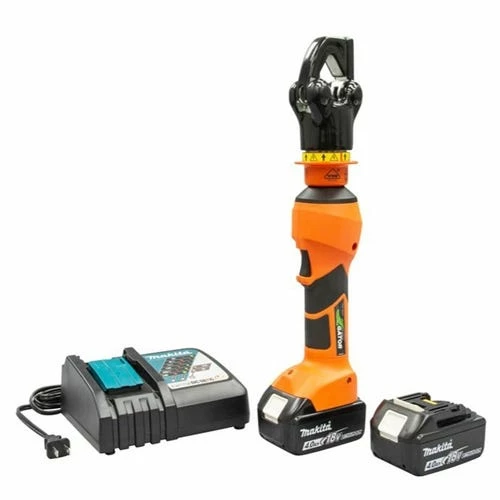

6 Ton Insulated Crimper w/ 6ID Head and 120V Charger EK6IDCVX11

FEATURES:

• Brush guarded head – helps avoid accidental contact with conductors.
• Tri-insulation barrier – Provides three (3) layers of protection (Patent Pending).
• 360° Rotating head – For improved agility in confined work spaces.
• Double -tap safety feature option -Prevents unintentional operation.
• Bluetooth communication Connects with Greenlee i-press App.
• Equipped with Intelli-crimp technology.
• 1000v Insulation.

CRIMPING CAPACITY:

Standard Strand; 8 AWG – 500 kcmil Cu; 1/0 AWG – 350 kcmil Al; Fine Strand; 8 AWG – 350 Kcmil CuDLO; 8 AWG – 373.3 Kcmil Cu.

SPECIFICATIONS:

Sub Brand	Gator
Type	6 Ton Crimping
Application	6 Ton Crimping
Standard	C/US UL Listed; IEC 62481-1; VDE; CSA; MET Tested
Overall Length	16 IN (406mm)
Crimping Force	Variable 3-6 Ton (30-60 kN)
Connector Type	Color-coded lugs and splices.
Handle Type	In-Line Style with over molded rubber grip.
