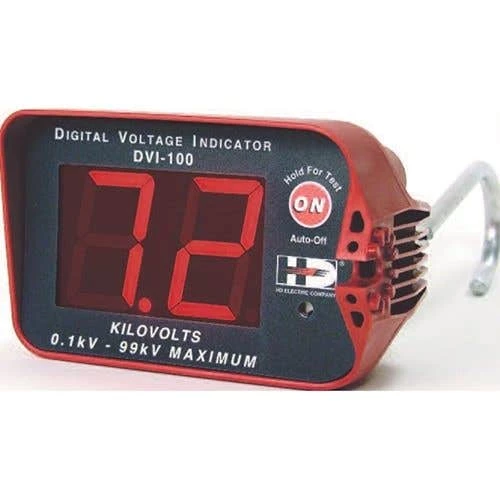

Greenlee Digital Voltage Indicator 100kV; OH DVI-100

Greenlee

Digital Voltage Indicator 100kV; OH DVI-100

FEATURES:

• Measures voltage up to 99kv line-to-ground
• Voltage readout distinguishes between nominal and induced voltages
• Audible indication when voltage is detected
• Test Point mode available (DVI-100T model)
• Auto-shutoff and low battery indication features
• Versatile for overhead and underground applications

SPECIFICATIONS:

Sub Brand	HDE
Type	Digital Voltage Indicator
Model	DVI-100
Voltage Rating	100V – 99kV line-to-ground
Accuracy	Laboratory calibrated to +/-3%. Typical overhead line in compact overhead three phase +/-10%. Other applications up to +/-25%
Display	LED display
Operating Temperature	-20°F to +140°F (-29°C to +60°C)
Dimensions	4.25H x 7″W x 4.5″D (11 cm x 18 cm x 11 cm)
Frequency Rating	AC 60Hz (50Hz model available)

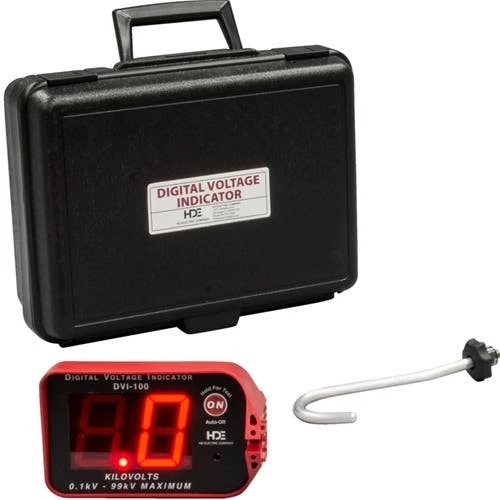

Included	DVI-100; HP-DVI-2 2″ Overhead Hook Probe

“
