Greenlee
DigiVolt Digital Voltmeter 80kV DVM-80UVM
FEATURES:
- Measures voltage and performs phasing operations from 50V to 40kV and up to 80kV with add-on resistors
- Provides consistent high accuracy voltage measurements – within 1% of reading
- Auto-ranging – no settings required
- Capacitive Test Point and Peak Hold modes
- Auto-shutoff and low battery indicator features

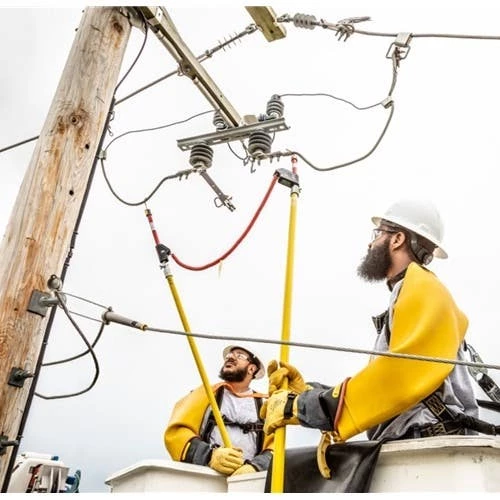

- Versatile for overhead and underground applications
SPECIFICATIONS:
| Sub Brand | HDE |
|---|---|
| Type | Voltmeter |
| Model | DVM-80UVM |
| Voltage Rating | 5V – 40kV up to 80kV with add-on resistors |
| Accuracy | Within 1% of reading +/- 3 counts (line-to-ground and line-to-line measurements); Within 2% of reading +/- 3 counts (line-to-ground & line-to-line measurements) with add-on resistors |
| Display | LCD indicates 3.5 digits |
| Operating Temperature | -20°F to +140°F (–29°C to +60°C) |
| Dimensions | 5 W x 4.25″ L x 1.38″ H (13 cm x 11 cm x 3.5 cm) |
| Frequency Rating | 25 – 1000Hz AC/DC |

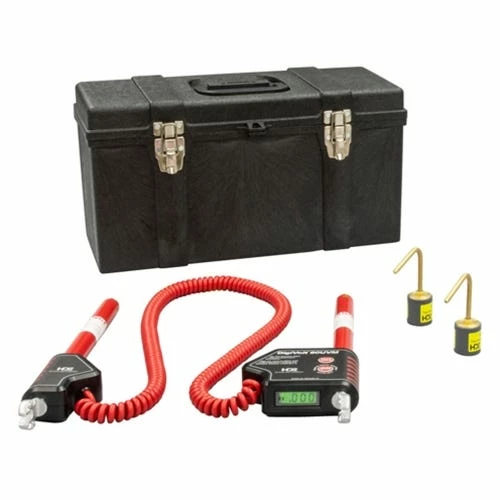

| Included | DVM-80UVM Voltmeter; 025-OLPS-5 Overhead Brass Hook Probes (2); CS-DVM Case |
“
