Greenlee Double Vision Dual Display Wireless Voltage Indicating Phaser 100V-138kV; OH Kit; Base DDVIP-138

Greenlee

Double Vision Dual Display Wireless Voltage Indicating Phaser 100V-138kV; OH Kit; Base DDVIP-138

FEATURES:

• Measures voltage from 100V to 138kV line-to-line.
• Can be used individually as voltage indicators or together for phasing operations up to 100 ft (30 m) apart.
• Two LED displays are automatically synchronized during phasing operations.
• Clear in-phase and out-of-phase indication.
• Versatile for overhead and underground applications.
• Capacitive Test Point and Peak Hold modes

SPECIFICATIONS:

Sub Brand	HDE
Type	Voltage Indicator & Phasing set
Model	DDVIP-138
Voltage Rating	100V – 138kV line-to-line; 100V – 80kV line-to-ground
Accuracy	Within 15%; dependent on geometry
Display	Two LED displays with 0.7 numeral height. Displays 3 digits
Operating Temperature	-20°F to +120°F (-29°C to +49°C)
Dimensions	14″ L x 4.6″ W x 4.1″ H (36 cm x 12 cm x 10 cm)
Frequency Rating	AC 50/60Hz
Phase Indication	In-Phase/Out-of-Phase

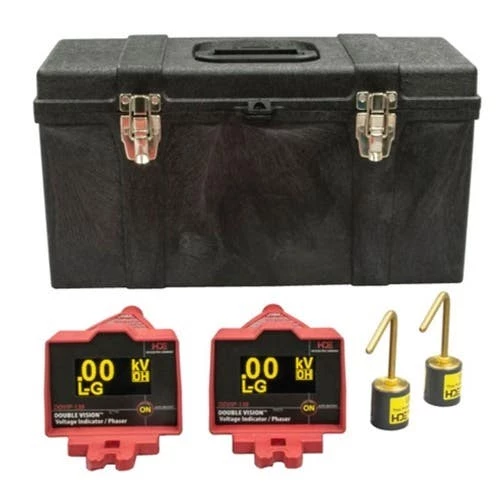

Included	DDVIP-138; (2) 025-OLPS-5 Overhead Brass Hook Probes (2) and CS-DDVM Case

“
