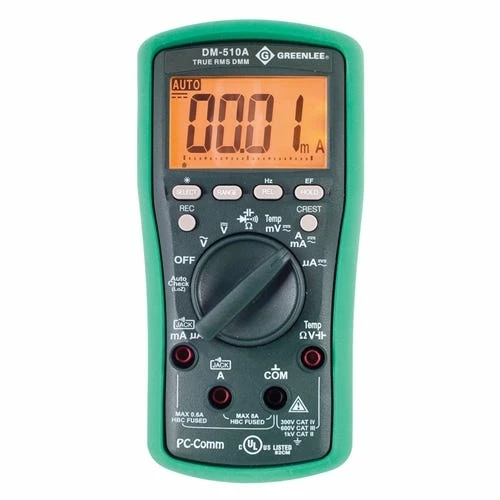

Greenlee ESM Series Professional Plant Digital Multimeter DM-510A

Original price was: $180.79.Current price is: $96.99.

SKU: GRDM-510A Categories: Greenlee, Greenlee Testing and Measurement Tag: Greenlee

Buy quality, buy with us.
Safeguard Your Shopping Experience
Online customer care, always here for you.
Get the Best for Less

Greenlee
ESM Series Professional Plant Digital Multimeter DM-510A
Measures voltage; current; resistance and frequency
Tests continuity and diodes
Backlit LCD with 6;000 count display
Two voltage detection modes – non-contact or using a single test lead
BeepJack warns when test leads are incorrectly inserted in current measurement terminals
Automatic and manual rangeselection
Relative offset mode to see changes in measurements
Data hold
Use optional USB / RS-232 interface DMSC-2U for direct-to-PC logging
Lifetime Limited Warranty
Accessories included: (2)1.5V AAA batteries; bead temperature probe (DM-210A; DM-510A only; 400F/204C max); test leads; protective boot
True RMS for no-compromise accuracy
Crest capture (peak hold) plus recording of max; min; max-min and average
Low impedance AutoCheck mode – automatically selects AC or DC volts; resistance or continuity; Low impedance masks ghost voltage pickup
Measures capacitance
Measures temperature using a type K thermocouple
Amperage Measurement : 600; 6000A; 60; 600mA; 6; 8A
Battery : (2) 1.5 V AAA
Capacitance : 60; 600 nF; 6; 60; 600; 3000F
Display : Backlit LCD With 6;000 Count
Frequency Measurement : 10Hz – 50kHz Sine Wave; 5Hz – 999.9kHz Logic Level Square Wave
Includes : (2) 1.5V AAA Batteries; Bead Temperature Probe (DM-210A; DM-510A Only; 400F/204C max); Test leads; ProtectiveBoot
Measurement Category : CAT IV 300 V; CAT III 600 V; CAT II 1000 V
Replacement Part : TSG-3 Sure-Grip Test Leads
Resistance Measurement : 600O; 6; 60; 600 kO; 6; 60 MO
Standard : CAT IV; CAT II; C/UL US Listed; CAT III; CE Listed
Sub Brand : ESM
Temperature Rating : K Type; -58 To 1832F (-50 To 1000C)
Type : Professional Plant Digital
Voltage Measurement : 60; 600 mV; 6; 60; 600; 1000V
