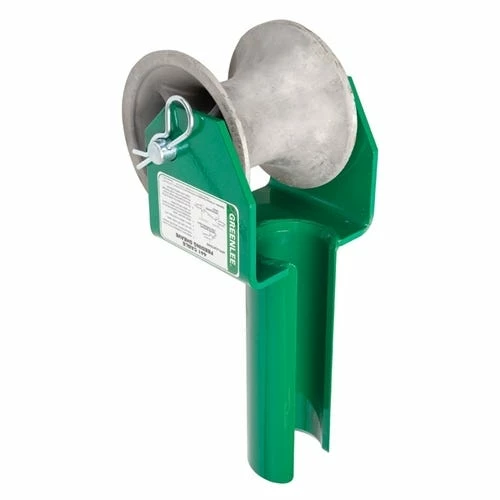

Greenlee Feeding Sheave 3″ Conduit 441-3

• Greenlee
• Feeding Sheave for 3 Conduit 441-3
• Yoke frame slides into the end of conduit and holds sheave; allowing the cable being fed into the conduit to smoothly roll over the sheave
• 5.000 IN (127.000 MM) wide aluminum alloy sheave with self-Lubricating bearings
• Split tube for easy removal after cable is installed
• Capacity : 6050.000 LB (26.900 KN) At 15DEG; 3150.000 LB (14.000 KN) At 30 DEG; 2200.000 LB (9.700 KN) At 45 DEG; 1800.000 LB (8.000 KN) At 60 DEG; 1600.000 LB(7.100 KN) At 75 DEG; 1550.000 LB (6.800 KN) At 90 DEG
• Includes : 25160 UPC 25160 Sheave Pin; 50302 UPC 50302 Sheave Pin Clip(2); 15362 UPC 15362 Sheave
• Weight : 14.000 LB (6.400 KG)

“
