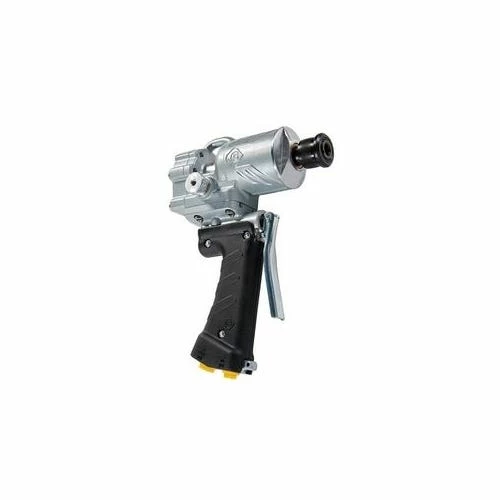

Greenlee Hydraulic 7/16″ Hex Impact Wrench HW1

• Greenlee
• Hydraulic Impact Wrench HW1
• Impact and temperature resistant replaceable polymer grip designed to dissipate heat from the cast handle
• Weight reduction of 14% to previous models
• Improved center-of-gravity for superior ergonomics
• Increased service life with the addition of back-up rings and larger O-rings
• Built-in hydraulic check valve to eliminate damage from an improperly connected tool
• Large and strong lifting eye for easy and secure storage
• Longer and wider trigger provides improved control with insulated gloves
• Fast and easy change between open-center systems and closed-center systems with no disassembly required
• Higher breaking torque in reverse to ensure you can remove tighted bolts
• Cast motor enclosure that better protects the impact mechanism operation versus competing models with stamped steel enclosure
• Accessory : NR1 Nut Runner With Adapter For 5/8; 1/2″; 13/16″ and 1.000″ Square Nuts; NR2 Nut Runner With Adapter For 1.000″; 1-1/8″ And 1-5/16″ Square Nuts; 00376 Trigger Guard Kit For HW1 Or HW1V; 49314 Heavy Duty 7/16″ Hex X 1/2″ Square Drive Shank
• Capacity : 7/16 IN Hex
• Drive Size : 1/2 IN
• Flow Range : 4 – 12 GPM (15 – 46 LPM)
• Handle Type : Impact And Temperature Resistant Replaceable Polymer Grip
• Height : 11.000 IN
• Hydraulic System : Super Spool Selector For Open and Closed-Center Systems
• Includes : 7/16 Hex Quick-Change Chuck And 49314 Heavy-Duty Adapter IN
• Length : 8.200 IN
• Operating Pressure : 1000 – 2500 PSI (69 – 170 BAR)
• Optimum Flow Range : 5 – 8 GPM (19 – 30 LPM)
• Pressure Port : 9/16 – 18 SAE O-Ring
• Replacement : 54923 HTMA Male Coupler: HTMA; 3/4-16 SAE O-Ring Exterior Thread; 54925 HTMA Female Coupler: HTMA; 9/16-18 SAE O-Ring Exterior Thread
• Return Port : 3/4 – 16 SAE O-Ring
• Torque Rating : 500 FT-LB At 8 GPM (677 N-M At 30 LPM) Maximum; 500 FT-LB At 8 GPM (677 N-M At 30 LPM) Minimum
• Type : Hydraulic; High Torque
• Weight : 6.500 LB (2.930 KG)
• Width : 4.200 IN

“
