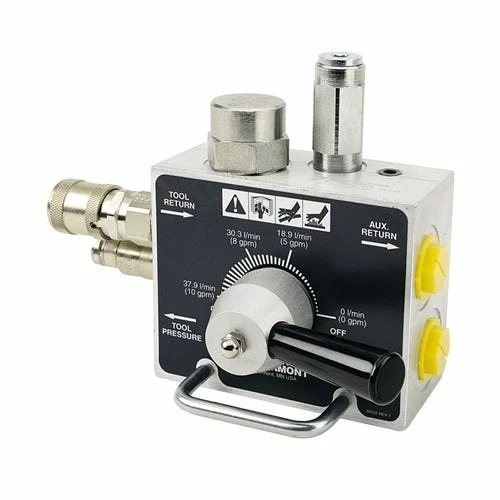

Greenlee Hydraulic Flow Control Valve HFC30

Original price was: $359.00.Current price is: $97.99.

Greenlee
Hydraulic Flow Control Valve HFC30
Operates off other equipment’s hydraulic accessory circuit – no need for a separate power unit
Accepts up to 30 gpm (113 lpm) for running off most skid-steer; tractors and loaders
Variable flow adjustment allows precise flow control for tool operation
Integral pressure relief valve helps protect hydraulic equipment and tools
All-aluminum body design is lightweight and provides better heat dissipation
Low profile; compact unit is unobtrusive and easy to install
All tool ports have O-Ringboss and accept industry standard hoses and couplers
Couplers : 54923 And 54925
Height : 5.030 IN (128.000 MM)
Hydraulic Ports : Power Source Side – Pressure:1-1/16 IN – 12 SAE O-Ring; Power Source Side – Return: 1-1/16 IN – 12 SAE O-Ring; Tool Side – Pressure: 3/4 IN – 16 SAEO-Ring Boss HTMA Flush Face Coupling; Tool Side – Return: 3/4 IN – 16 SAE O-Ring Boss HTMA Flush Face Cou
Input Flow Range : 30 GPM (113 LPM) At 3000 PSI (207 BAR)
Length : 8.790 IN (223.000 MM)
Output Flow Range : 10 GPM (38 LPM) At 2150 PSI (148 BAR)
Temperature Range : -30 to 140 F (-34 to 60 C)
Type : Hydraulic Flow
Weight : 8.300 LB (3.800 KG)
Width : 6.720 IN (171.000 MM)
