Greenlee Next Generation V-WATCH Personal Voltage Detector VWS-20

Greenlee

Next Generation V-WATCH Personal Voltage Detector VWS-20

The next generation V-Watch Personal Voltage Detector providesan extra level of safety by detecting and alerting you to the presence of electrical fields or energized electrical equipment.

FEATURES:

• Provides another level of safety for line crews; storm restoration workers and first responders.
• Alerts user to the proximity of electric fields or energized electrical equipment with a loud alarm and bright lights.
• Frequency of alarm increases as the user gets closer to the electrical hazard.
• Detects voltage above 4kVAC line-to-line.
• Typical initial warning distance is about 7 ft from a 4kVAC conductor.
• Warning distance increases with higher voltages.
• Adjustable clip for use on personal protection gear.
• Field replaceable AAA batteries with low battery indicator.

SPECIFICATIONS:

Type	Personal Voltage Detector
Frequency Rating	50/60Hz
Voltage Rating	2400VAC and above – Do not use below 2400VAC line-to-ground
Indication Type	Audible and Visual Alert
Model	VWS-20
Overall Length	5.5

INCLUDES:

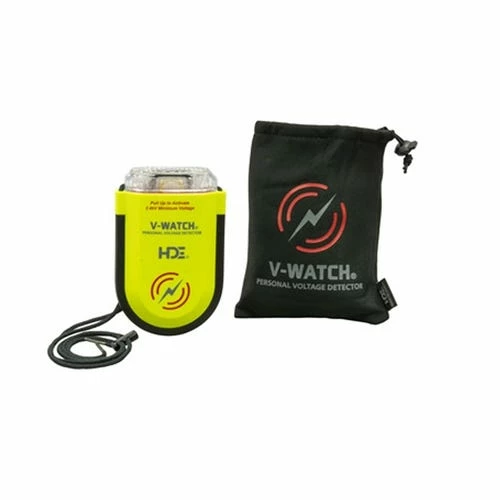

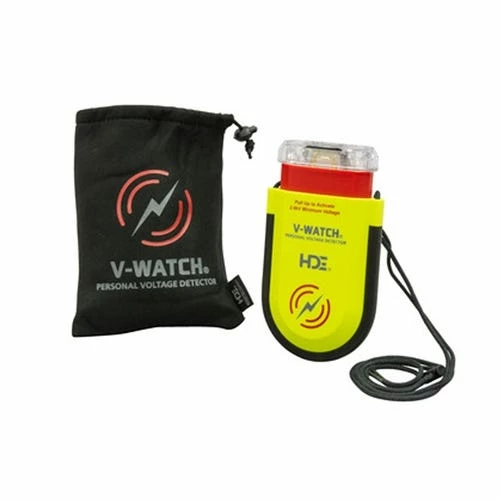

• (1) VWS-20 Detector
• (1) VW-S-BAG Carrying Bag

“
