Greenlee Underground Cable Tester 8kVDC; OH Kit UCT-8

Greenlee

Underground Cable Tester 8kVDC; OH Kit UCT-8

FEATURES:

• Compact and lightweight solution for underground cable testing

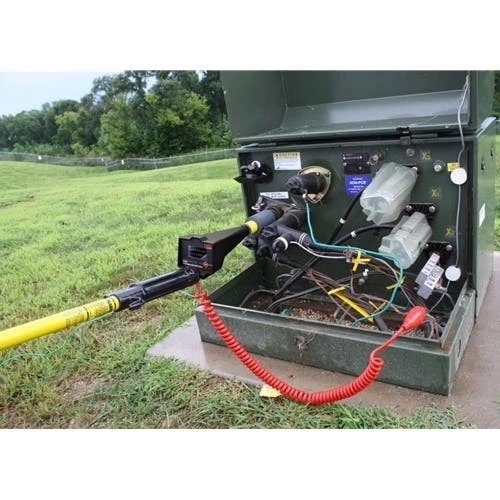

• DC Hi-Pot test of de-energized; shielded underground primary cable
• No external power required – self-contained 8kVDC voltage source
• Can be used up to a distance of 1500 ft (457m)
• Clear and simple test results – analog bar graph and indication of good or faulted cable
• Safety feature – measures AC voltage before converting to a DC voltage tester
• Lightweight; single hot stick operation for testing cable

SPECIFICATIONS:

Sub Brand	HDE
Type	Underground Cable Tester
Model	UCT-8
Voltage Rating	100V-25kVAC line-to-ground
Accuracy	+/- 5% of reading (AC Voltage)
Display	LED display
Operating Temperature	+20°F to +120°F (-7°C to +49°C)
Dimensions	14L x 4.6″W x 4.1″ H (36 cm x 12 cm x 10 cm)
Frequency Rating	50/60Hz

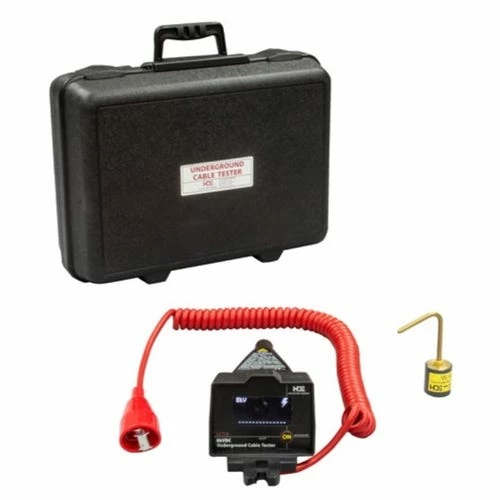

Included	UCT-8 Underground Cable Fault Tester; (1) 025-OLPS-5 Overhead Brass Hook Probe; CS-UCT Plastic Carrying Case

“
