Makita Tools Makita 40V Max XGT 5″ Paddle Switch Angle Grinder W/ Electric Brake (4.0Ah) Kit GAG03M1

Makita

40V Max XGT Brushless Cordless 4-1/2 / 5″ Paddle Switch Angle Grinder w/ Electric Brake (4.0Ah) Kit GAG03M1

The 40V max XGT Brushless Cordless 4-1/2″ / 5” Cut-Off/Paddle Switch Angle Grinder with Electric Brake (GAG03M1) delivers corded grinding performance without the cord for the most demanding applications. It’s powered by a Makita-built brushless motor which delivers 8;500 RPM for heavy-load applications and increased power and speed. It is ideal for grinding and cutting a wide range of materials including tile; concrete; pipe; conduit; and more.

FEATURES:

• OUTPOWER: Makita-built brushless motor along with 40V max XGT battery combine to deliver powerful grinding and up to 60% faster cutting speed than predecessor models*.
• OUTSMART: Electric brake stops the grinding or cut-off wheel in 2 seconds or less for maximum productivity.
• OUTLAST: Electronic current limiter helps protect the motor from overload in high torque application.
• Active Feedback-sensing Technology (AFT) turns the motor off if rotation of the wheel is suddenly forced to stop.
• Anti-restart protection engineered to prevent motor start up when battery is inserted with switch locked on.
• Large paddle switch allows for power start press points at multiple grip positions.
• Quick guard rotation allows easy tool-less adjustment for increased productivity.
• Soft start suppresses start-up reaction for smooth start-ups and longer gear life.
• Spiral bevel gears for smoother rotations and a more efficient transfer of energy.
• Reinforced metal gear housing engineered for maximum job site durability.
• Rubberized soft grip provides increased comfort on the job.
• Compact at only 16-1/8″ long; ideal for tight spaces.
• XGT Tools and Batteries are designed with a multi-layer contact interface for more constant power delivery to take on high-current demands.
• 3-year limited warranty on tool; battery and charger.

SPECIFICATIONS:

System	XGT
Wheel Diameter	5″
No Load Speed	8;500 RPM
Spindle Type	5/8″ – 11 UNC
Lock-On Switch	Yes
Lock-Off Switch	No
Switch Type	Body grip/slide
Bind-Up Control	Yes
Electric Brake	Yes
Variable speed dial	No
Automatic-start Wireless System (AWS)	No
Overall Length	16-1/8″
Power Type	Cordless

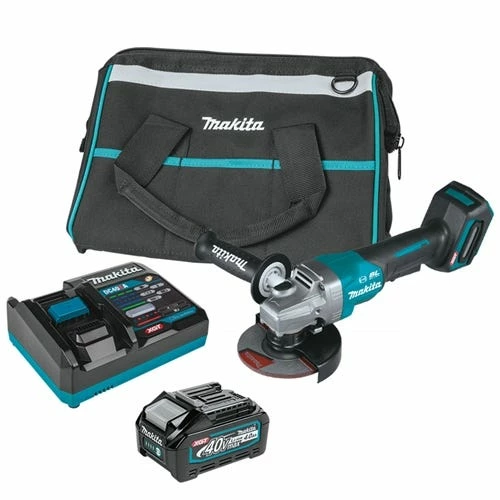

INCLUDES:

• (1) 40V max XGT Brushless 4-1/2” / 5″ Angle Grinder; with Electric Brake (GAG01Z)
• (1) 40V max XGT 4.0Ah Battery (BL4040)
• (1) 40V max XGT Rapid Optimum Charger (DC40RA)
• (1) 5″ x 1/4″ x 7/8″ INOX Grinding Wheel; 36 Grit (A-95962)
• (1) 5″ Tool-Less Wheel Guard (140N43-5)
• (1) Lock Nut Wrench (782424-9)
• (1) Side Handle
• (1) Tool Bag

“
