Greenlee High Voltage Ammeter 2000A HVA-2000

Greenlee

High Voltage Ammeter 2000A HVA-2000

FEATURES:

• Measures AC current from 1 to 2000 Amps on system voltages up to 500kV line-to-ground
• Stores the last 4 readings
• Dual measurement modes; peak hold and real time
• Takes spot-load checks with ease
• Verifies phases are balanced
• Versatile for overhead and underground applications
• Compact; lightweight design

SPECIFICATIONS:

Sub Brand	HDE
Type	Ammeter
Model	HVA-2000
Voltage Rating	0 – 500kV line-to-ground
Amperage Rating	1 -2000A
Accuracy	50-60Hz – 1–10A – 1% +/-2 counts; 11–100A – 1% +/-3 counts; 101–500A – 1% +/-6 counts; 501–2000A – 1% +/-8. 252-49Hz and 61-500Hz – 1–10A – 2% +/-3 counts; 11–100A – 2% +/-4 counts; 101–500A – 2% +/-6 counts; 501–2000A – 2% +/-8 counts
Display	LED display
Operating Temperature	-20°F to +140°F (-29°C to +60°C)
Dimensions	4”H x 6.6”W x 11.5”L
Frequency Rating	25 – 500Hz

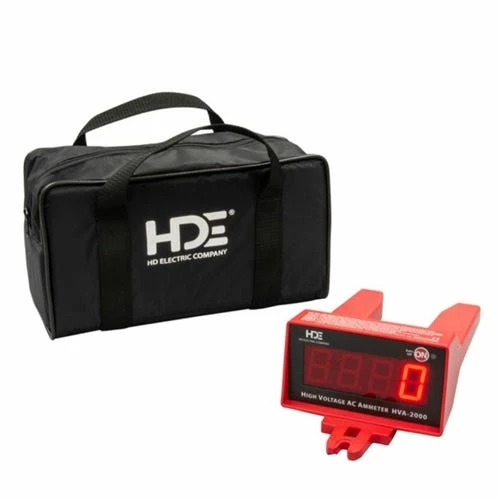

Included	HVA-2000 Ammeter; B-5 Bag
